Bluetti RV5 / B4810 Smart Kit 2 5000W All-in-One RV Power Solution

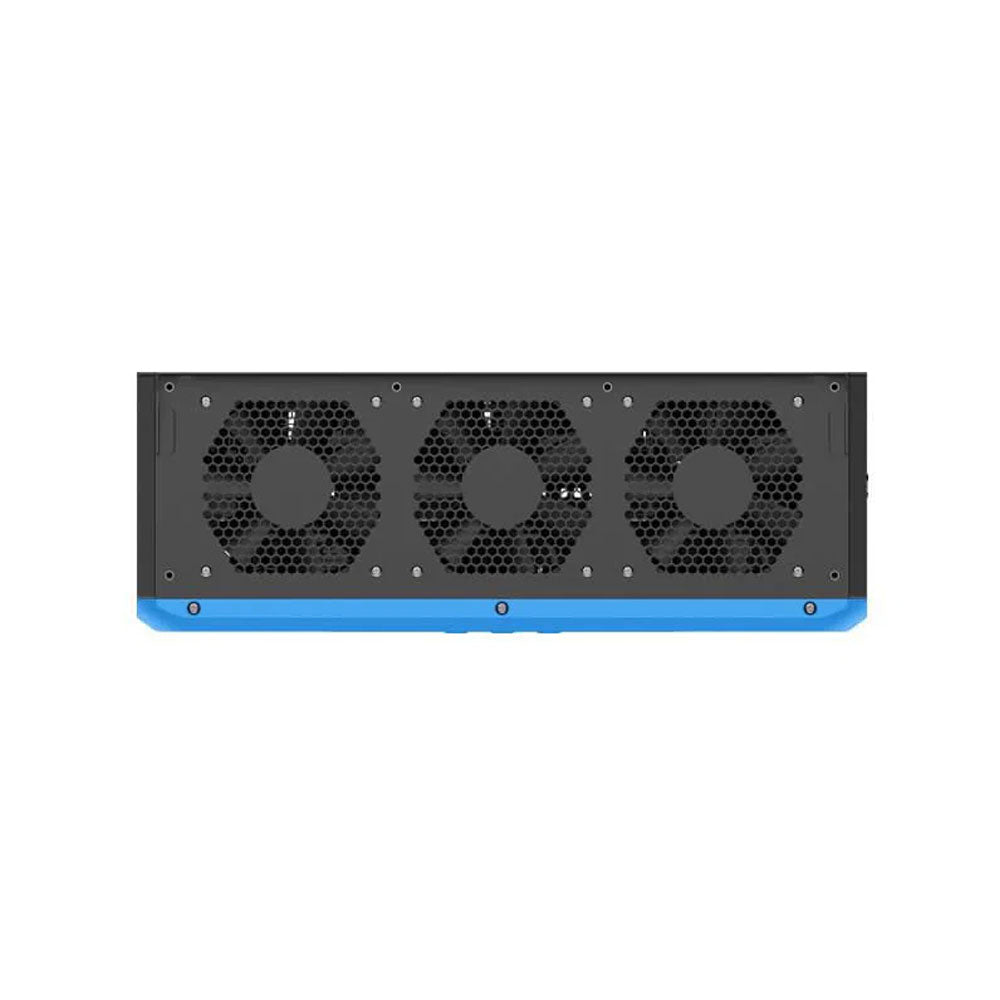

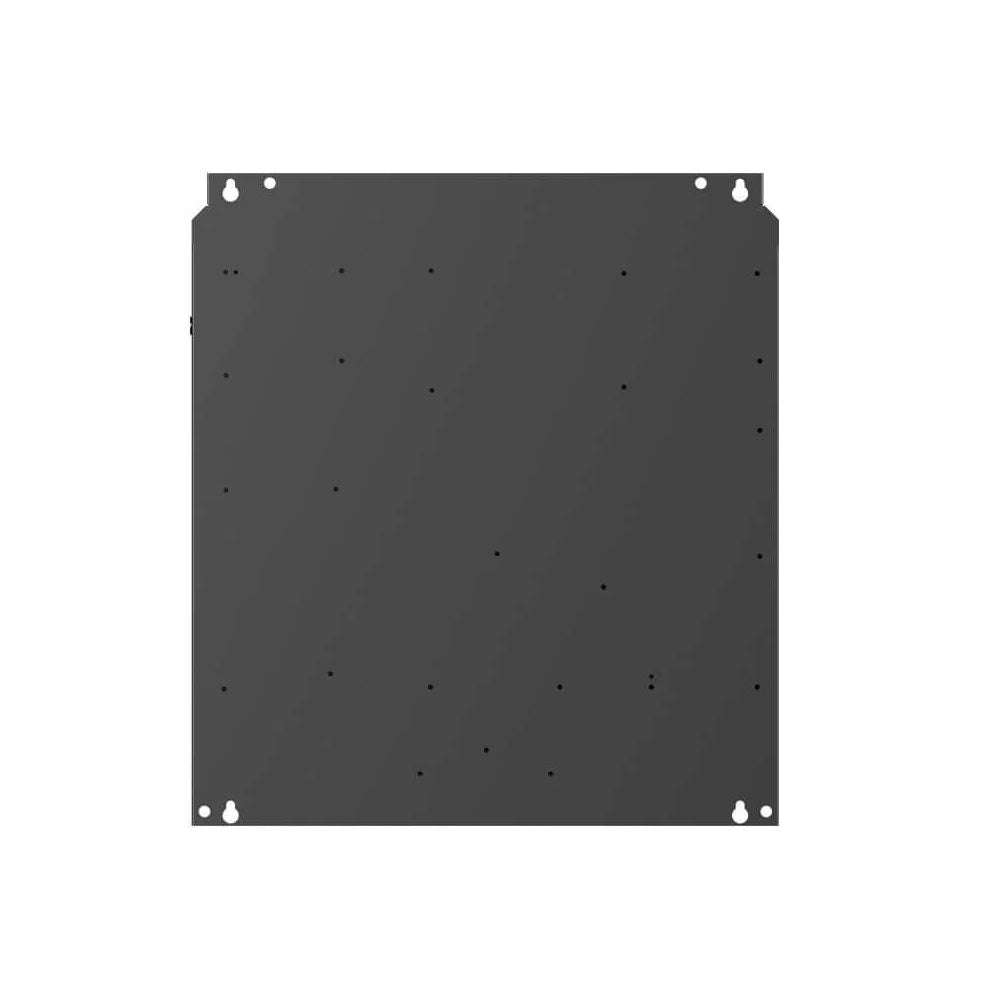

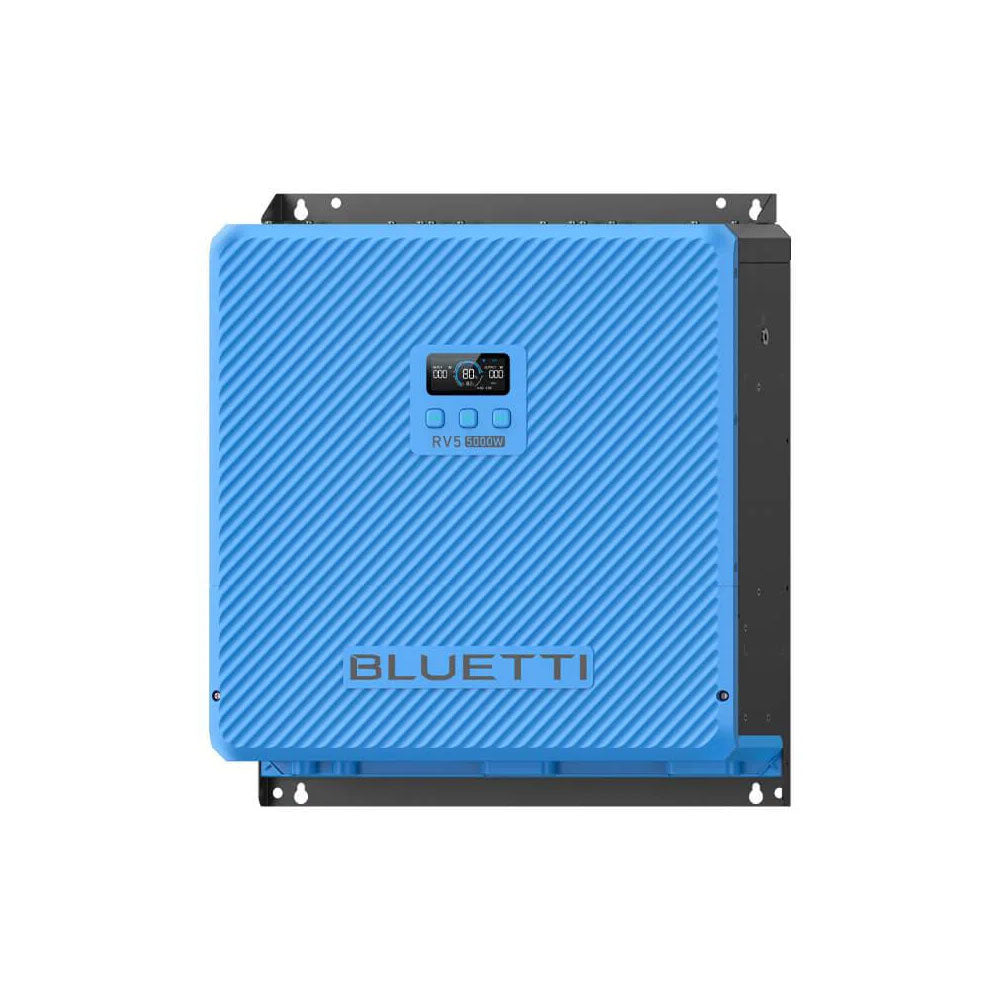

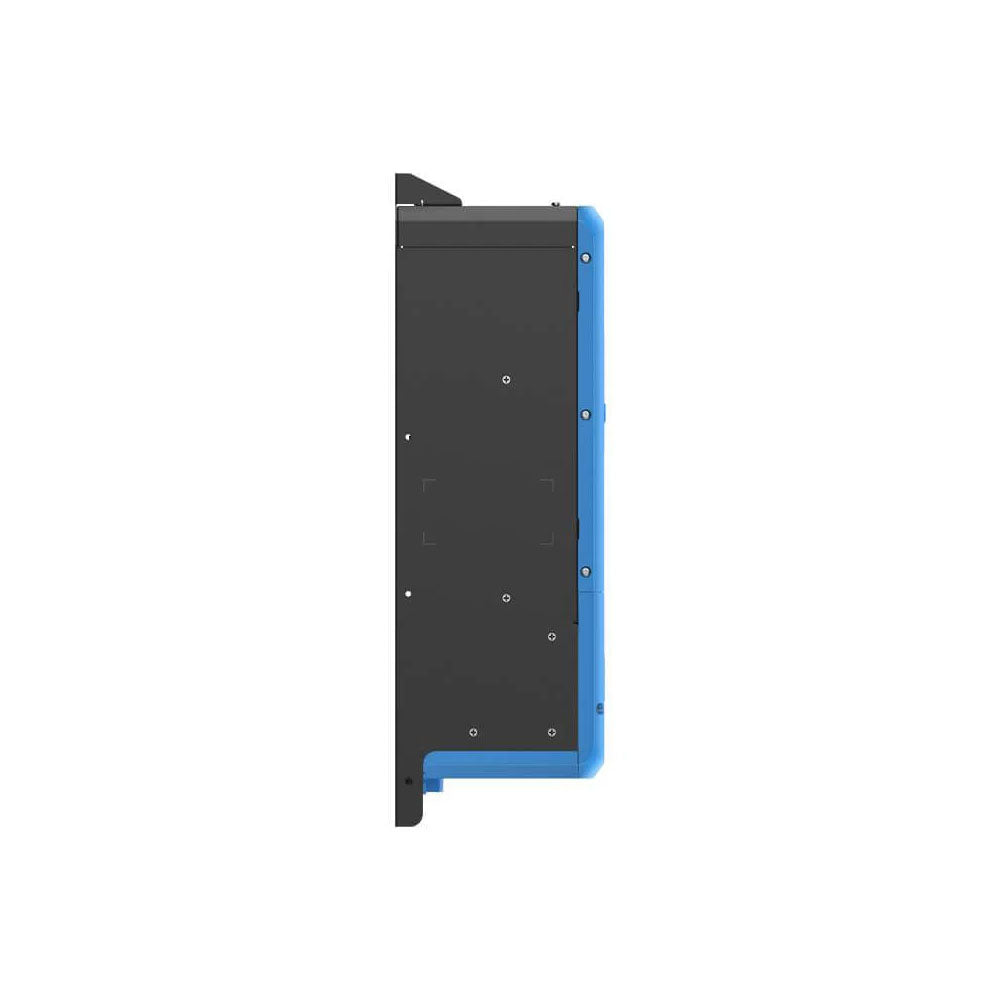

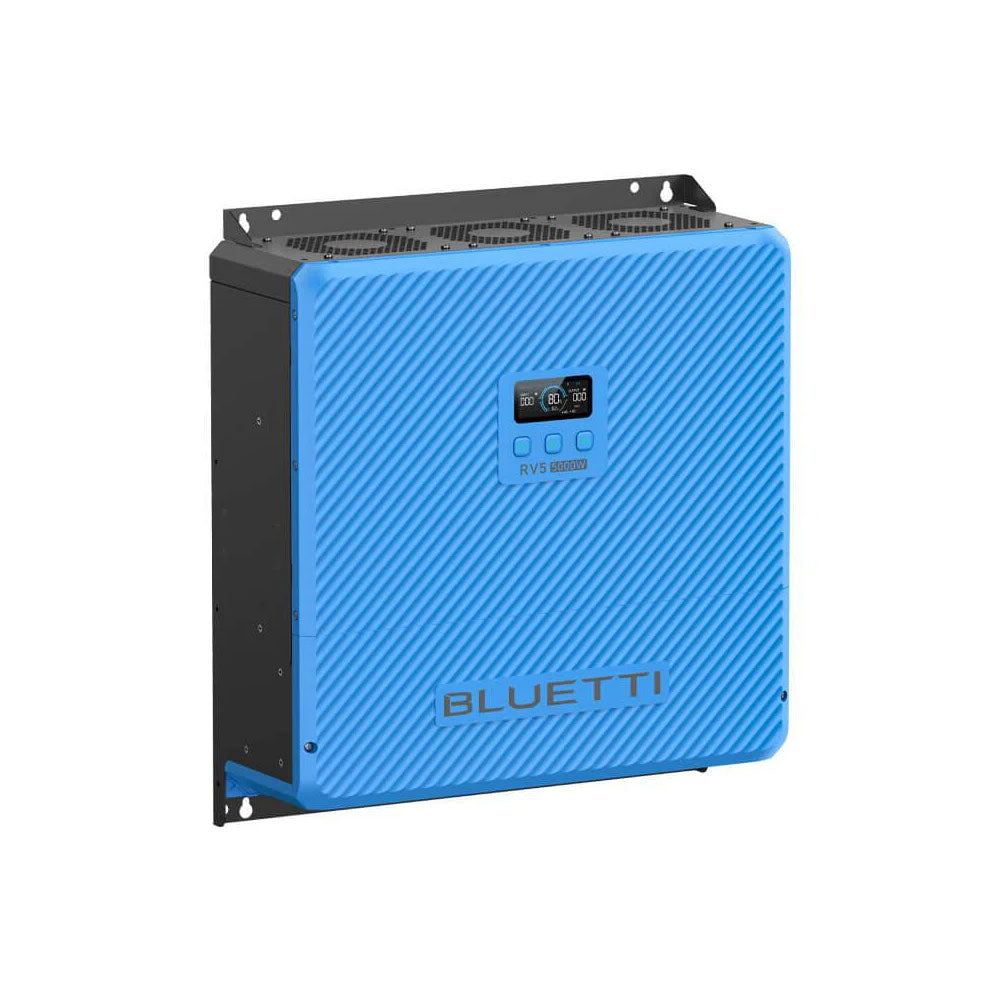

The BLUETTI RV5 is a compact all-in-one power hub for modern 48V energy systems. It combines an inverter, AC charger, solar charge controller, and DC-to-DC charger in one unit. Paired with a compatible 48V battery such as the BLUETTI B4810, it provides centralised power management for motorhomes, expedition vehicles, boats, and small off-grid installations.

  • Availability:
    In stock
  • SKU:
    RV5 SMART-KIT 2
  • Vendor:
Sale price £6,467.00
Regular price £7,999.00You saved 19% OFF
2 in stock

Bluetti RV5 / B4810 Smart Kit 2 5000W All-in-One RV Power Solution

Bluetti RV5 / B4810 Smart Kit 2

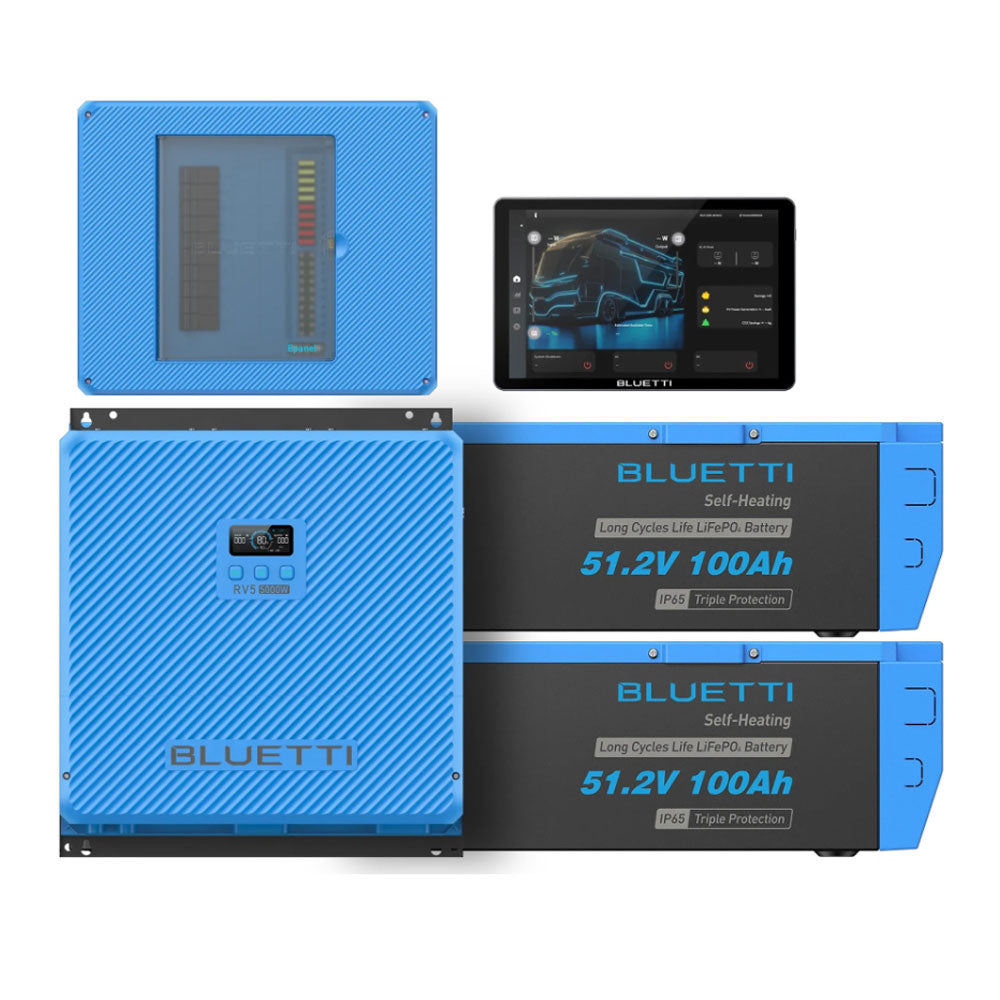

Smart Kit 2 Includes:

  • Bluetti RV5 Power Hub (5 Years Warranty)
  • 2 x Bluetti B4810 (51.2V-100Ah ) LiFePO4 Self Heating / App Monitor / 6000 Cycle IP65 Battery (5 Years Warranty)
  • Bluetti Epad Central Control Screen Intuitive HD Touchscreen (1 Year Warranty)
  • Bluetti Epanel Smart Intelligent Distribution Panel (1 Year Warranty)
  • Bluetti RV5 to B4810 Power Cable 1.5M + Isolator Switch Wiring Kit (1 Year Warranty)
  • Bluetti RV5 DC-DC Charger (Starter Battery) Wiring Kit (1 Year Warranty)
  • Bluetti B4810 100mm Long + Data Cable Parallel Wiring Kit Short (1 Year Warranty)
  • Bluetti RV5 to E-Panel Wiring Kit (1 Year Warranty)

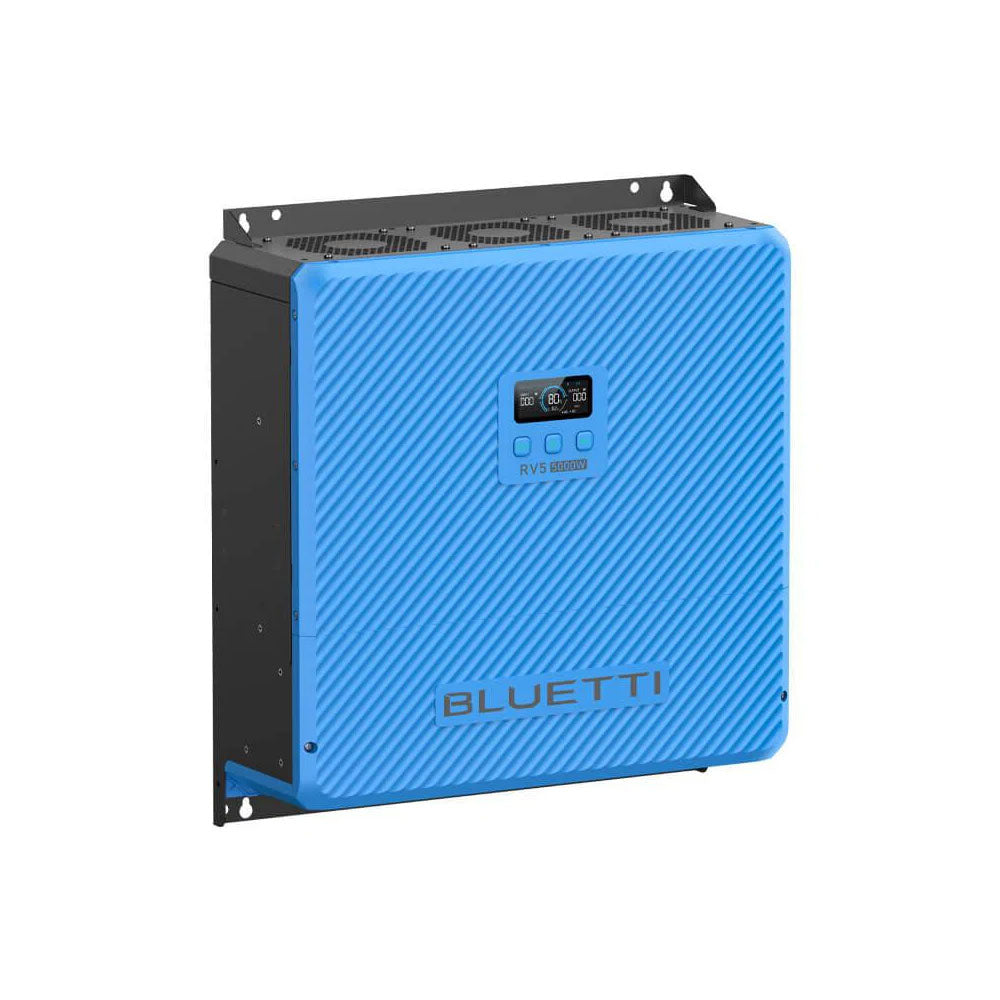

The BLUETTI RV5 is a compact power hub that forms the core of a modern 48 V energy system. In a single housing it combines an inverter, AC charger, charge controller and DC-DC charger. Together with a 48 V battery such as the BLUETTI B4810, it becomes a single central unit from which you control the entire electrical installation in a motorhome, expedition vehicle, boat or small off-grid system.

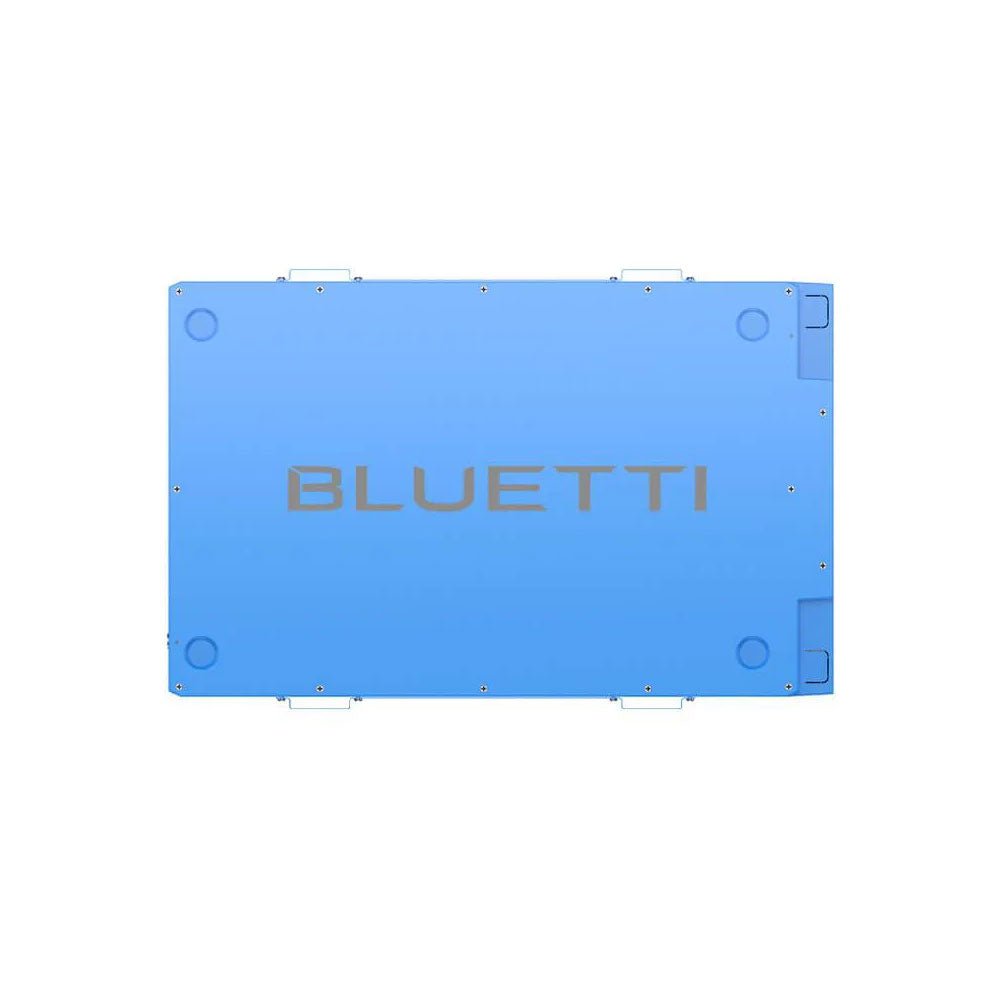

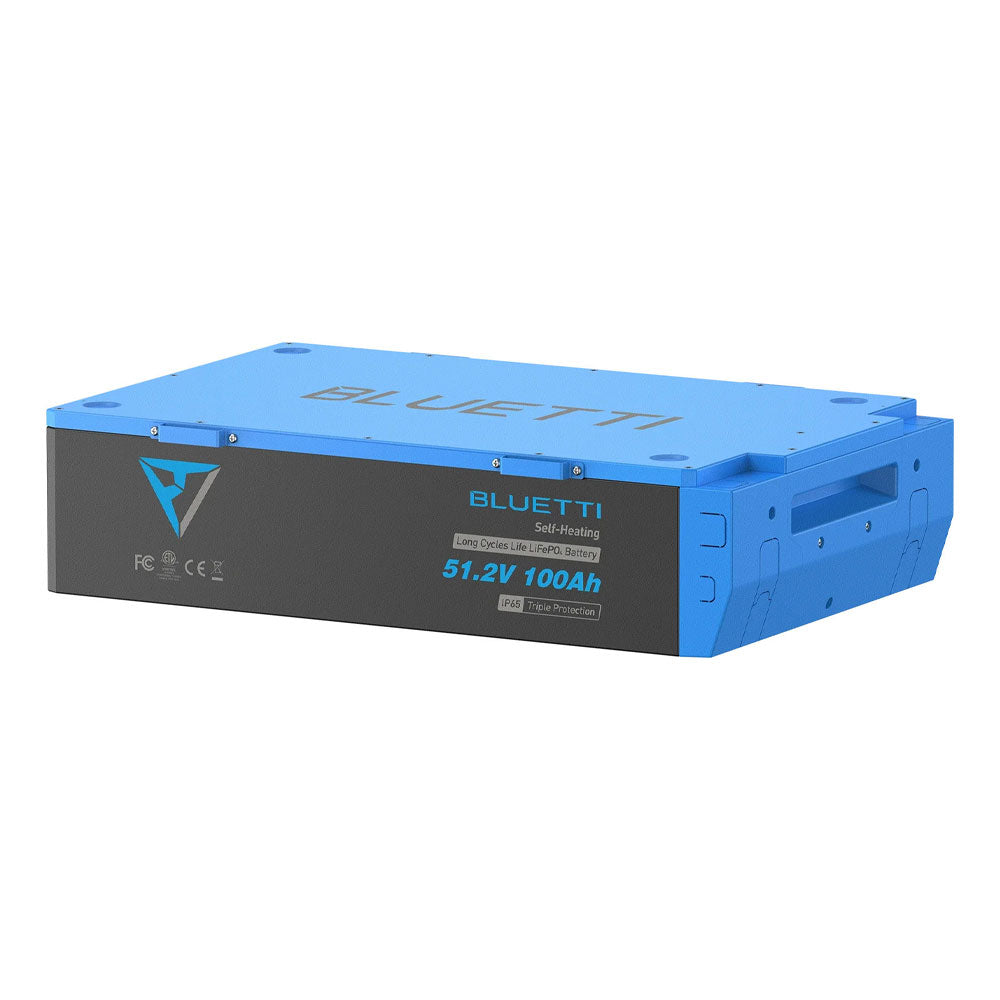

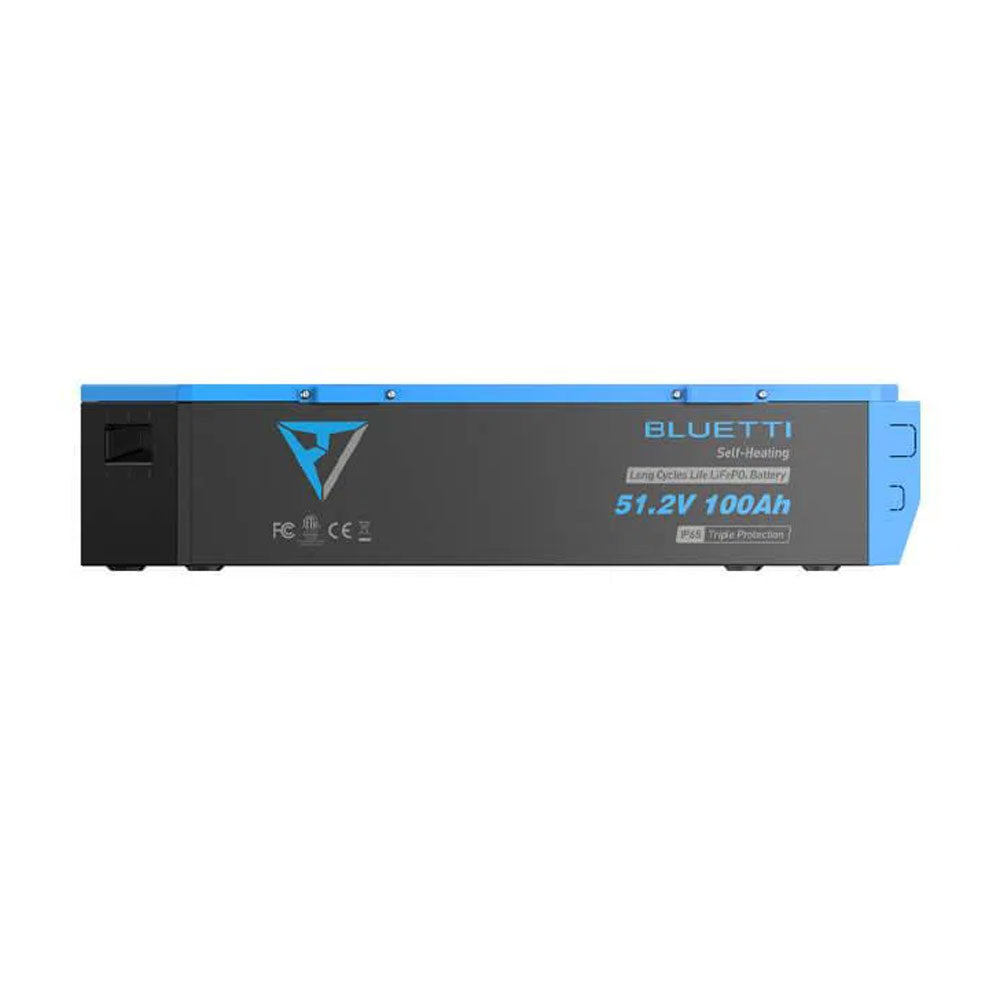

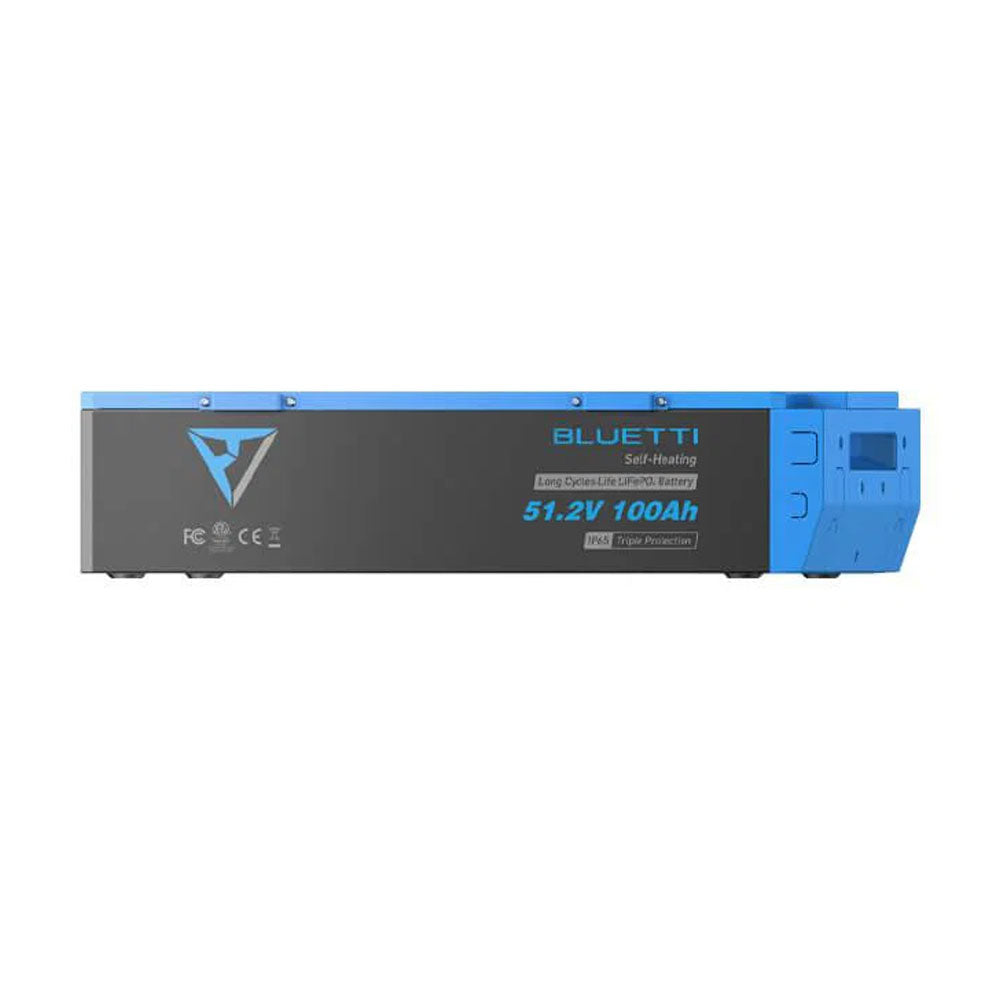

Battery Info

  • Battery Capacity 5,120Wh (51.2V, 100Ah)
  • Battery Type LiFePO₄ (Lithium Iron Phosphate)
  • Cycle Life 6,000 cycles @ 70% capacity

Charging & Discharging

  • Charge Current 50A (Recommended) 100 A Max.
  • Discharge Current 100A Max.
  • Peak Discharge Current 200A @ 30 s
  • Cell Temperature ProtectionCharging: <-1°C or >61°C (<30°F or >142°F),Discharging: <-21°C or >61°C (<-5.8°F or >142°F),

General

  • Weight Approx. 101.4lbs (46kg)
  • IP Rating IP65
  • Operating TemperatureCharging: -20°C to 55°C (-4°F to 131°F)Discharging: -20°C to 55°C (-4°F to 131°F)
  • Storage TemperatureUp to 1 month: -20°C to 40°C (-4°F to 104°F)Up to 6 months: -20°C to 25°C (-4°F to 77°F)
  • Dimensions (L × W × H) 23.94 × 14.96 × 5.71in (608 × 380 × 145mm)
  • Max. Expansion (Parallel & Series) 122.88kWh (24P) 51.2V, 2,400Ah
  • Certifications MSDS, UN38.3, FCC, CE, RoHS, UL

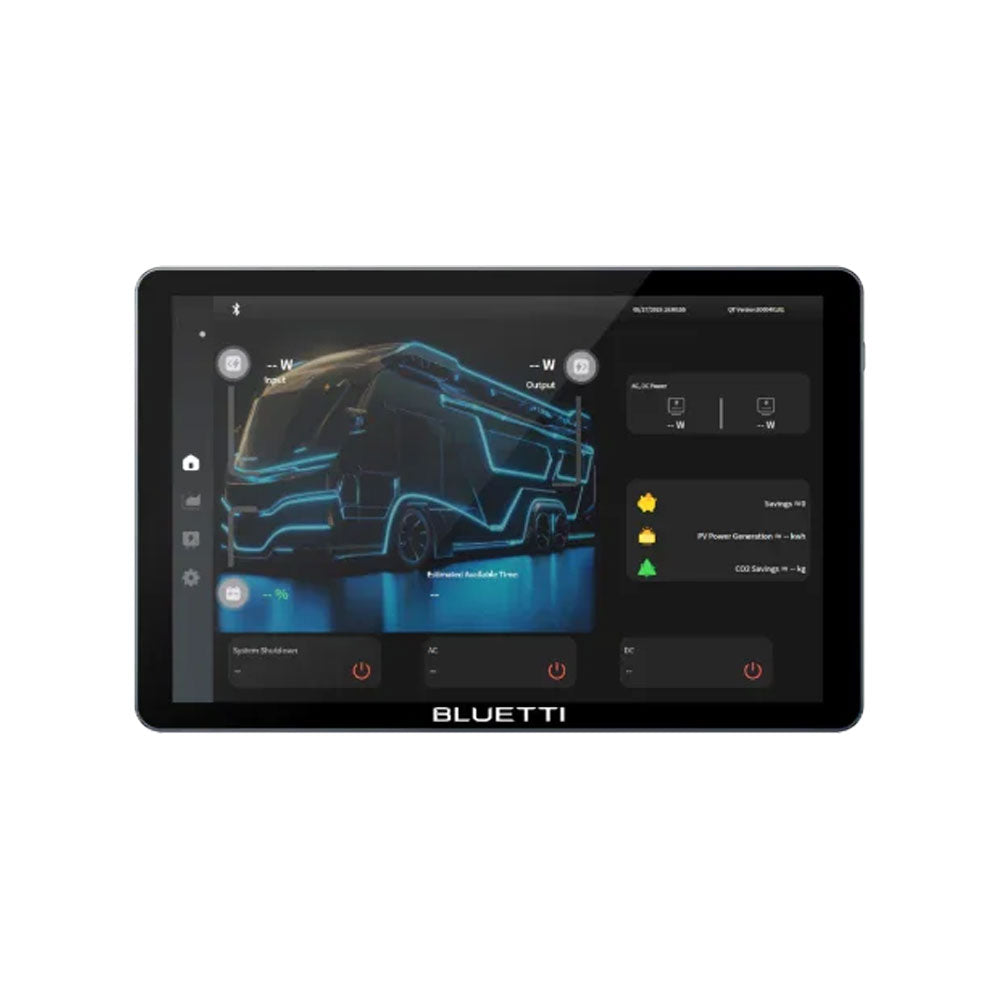

Bluetti Epad Central Control Screen

  • Vivid Touchscreen: High-resolution color LCD for intuitive control;
  • Universal Hub: Integrates BLUETTI & third-party devices (NMEA 2000/RV-C);
  • Smart Monitor & Control: Tracks sensors and automates devices (like generators);
  • Simplified Setup: Single RJ45 for power + data + Ethernet;
  • Compact & Durable: Sleek IP20 design, backed by a 5-year warranty

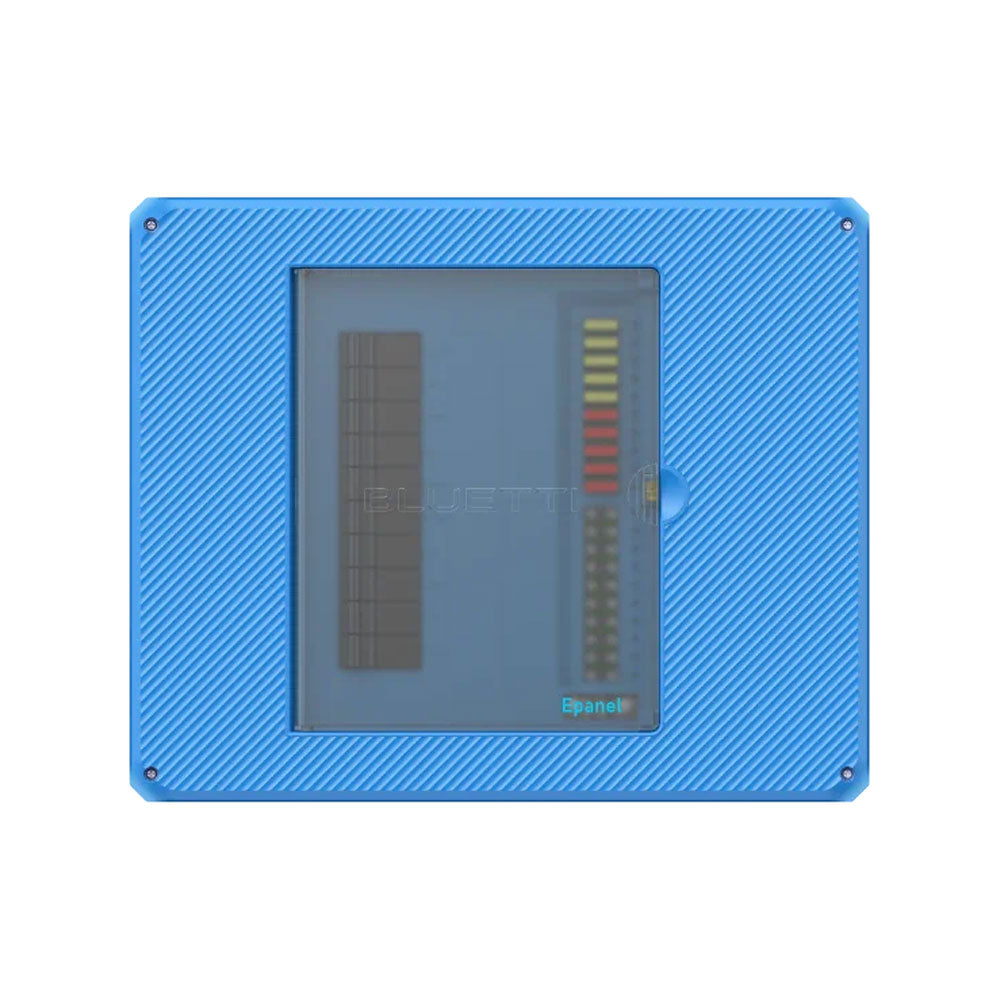

Bluetti Epanel Smart Distribution Panel

  • All-in-One Power Hub : Unifies AC and DC power management in a single, robust device for any application;
  • Smart Control & Monitoring: Remotely control outlets and monitor power usage via Bluetooth/Wi-Fi from your phone;
  • Global Voltage Ready: Seamlessly works with both 120V and 230V standards, perfect for home, RV, and global use.;
  • High-Capacity Performance: Handles up to 50A total AC load and 100A DC input for demanding power needs.;
  • Precision & Protection: Features 28 individually protected circuits (8 AC, 20 DC) for superior safety and control;

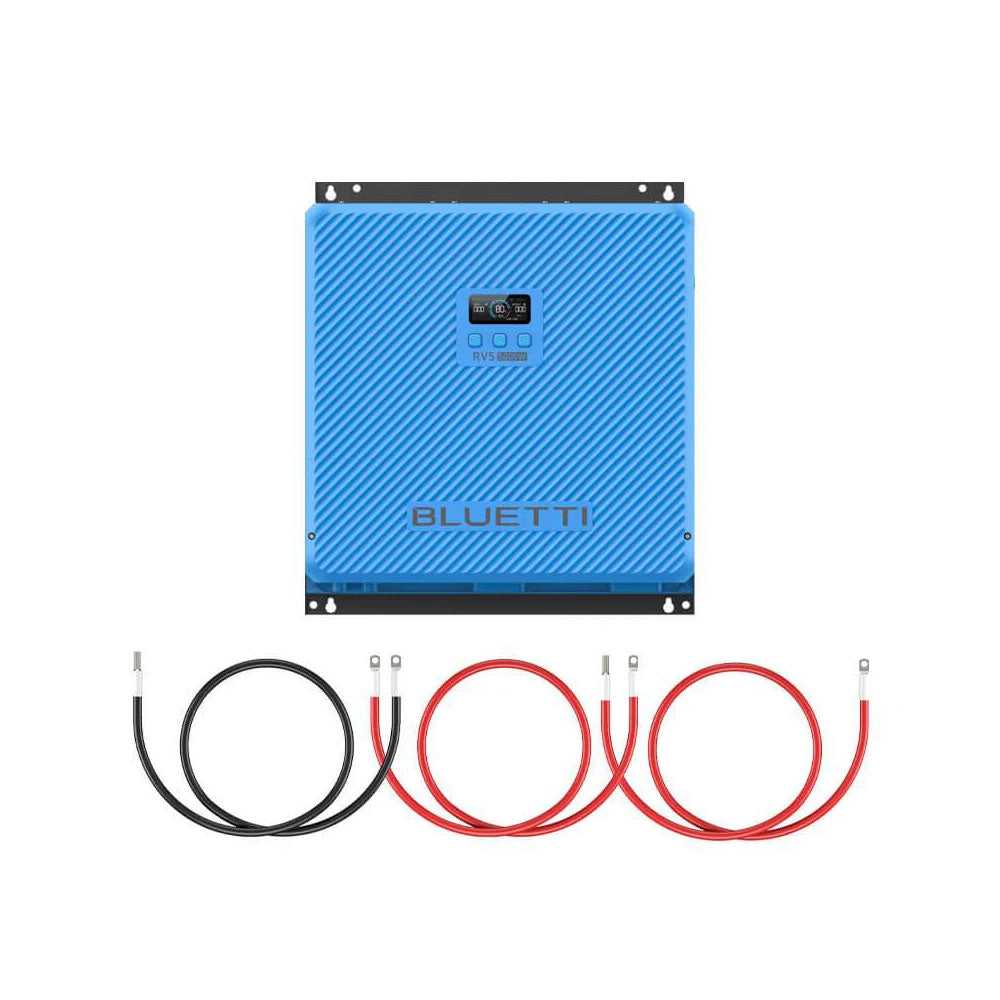

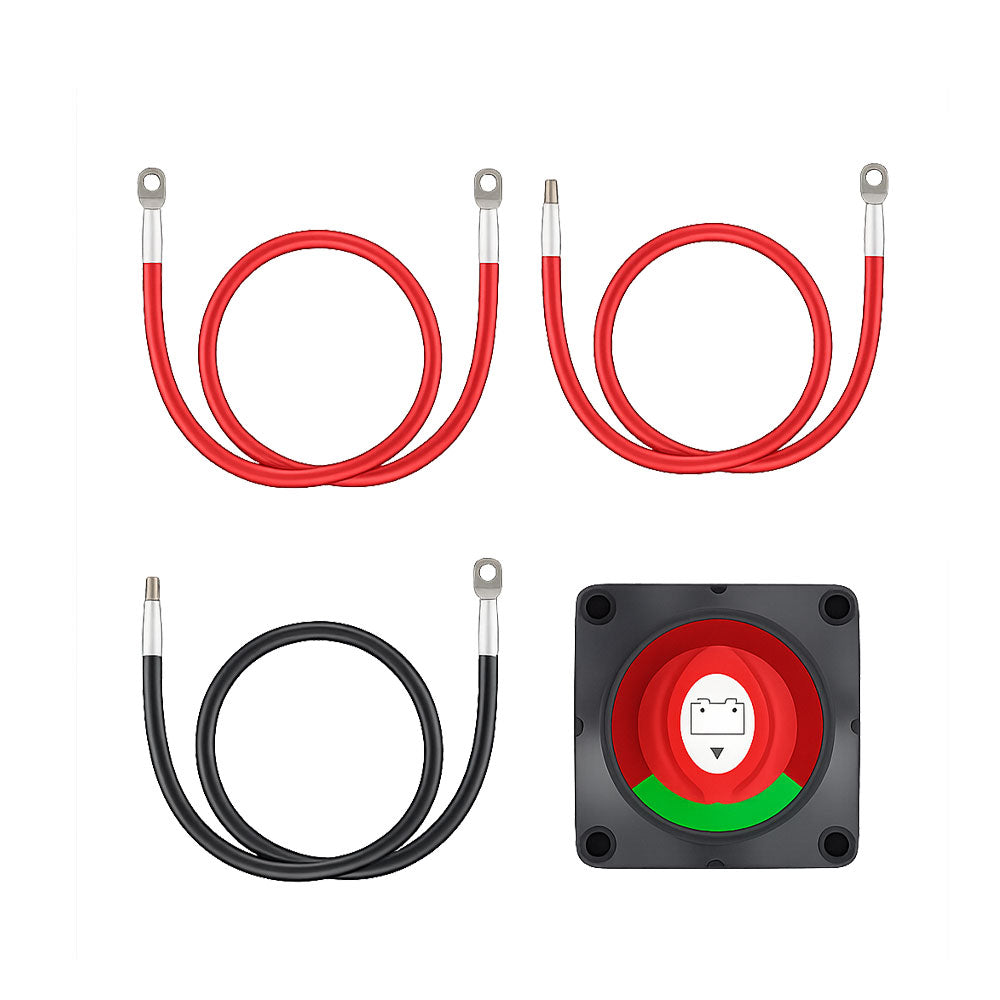

RV5 to B4810 Wiring Kit

  • 2G (35MM) POWER CABLE 1.5M + ISOLATOR SWITCH

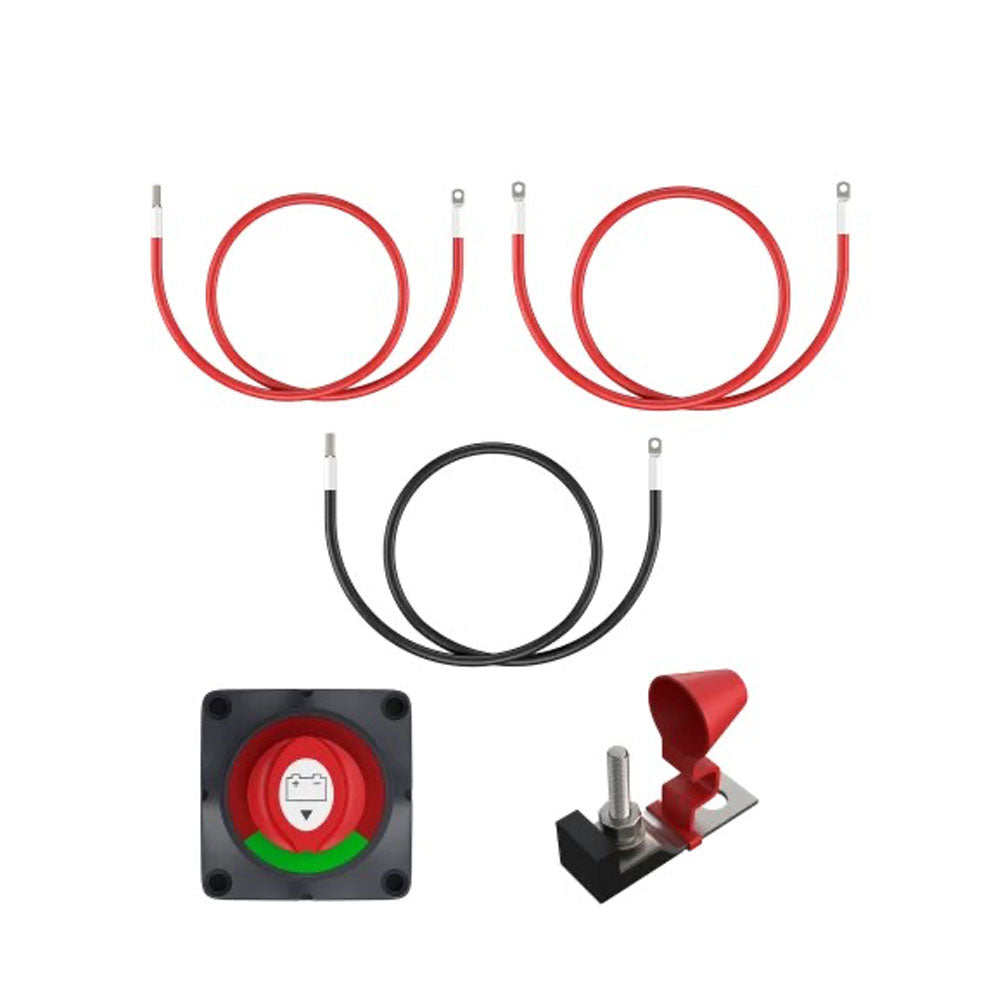

Bluetti RV5 DC-DC Charger (Starter Battery) Wiring Kit

  • 6G (16MM) X 5M CABLE WITH FUSE + ISOLATOR SWITCH

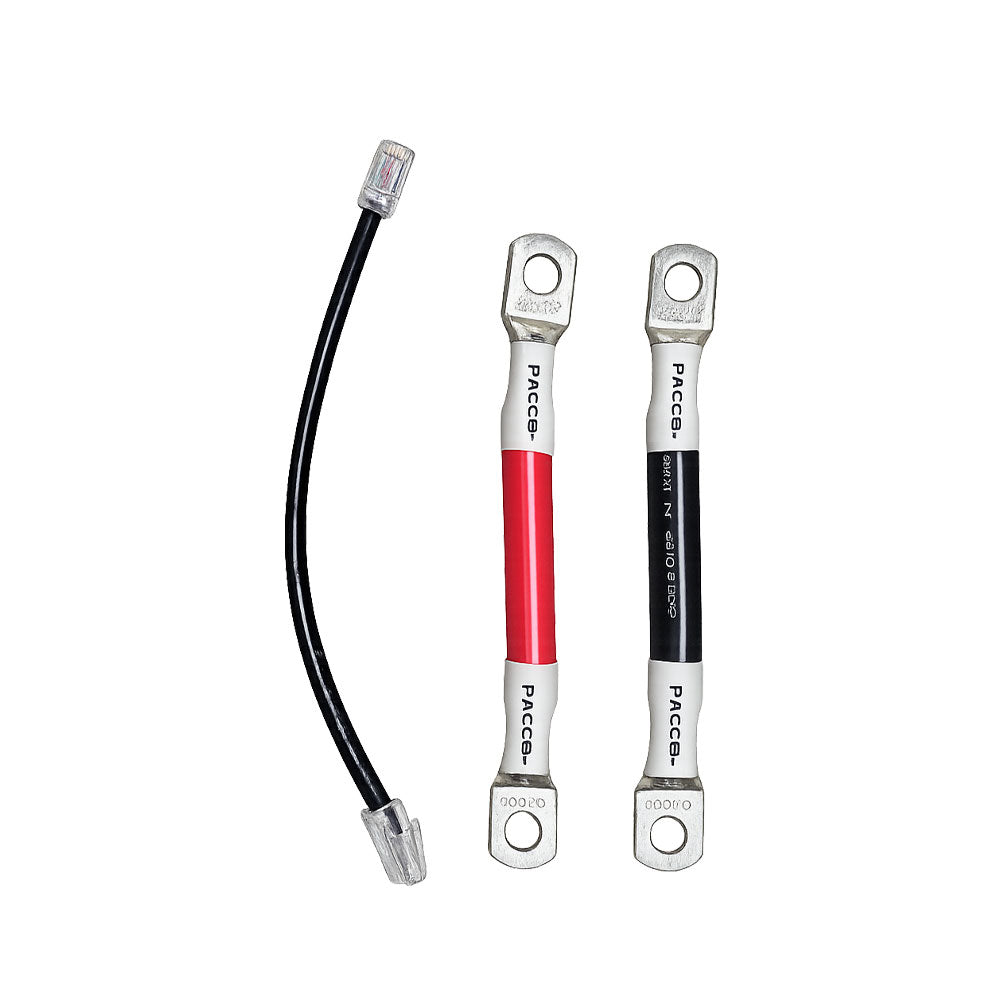

Bluetti B4810 Parallel Wiring Kit Short

  • 2G(35MM) . 100MM LONG + DATA CABLE

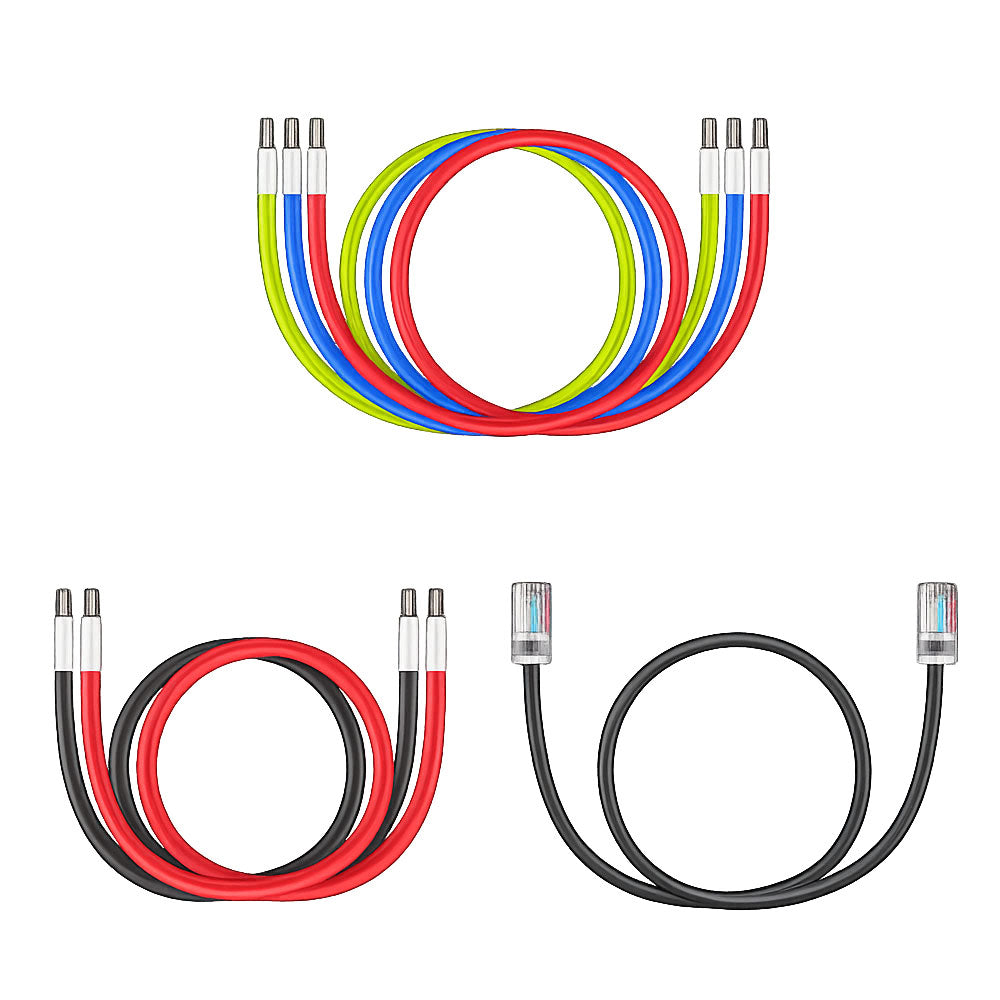

Bluetti RV5 to E-Panel Wiring Kit

  • 2G(35MM) DC WIRE 1.9M + 2.2M OF 6G EARTH /8G L&N

What's Included

  • Bluetti RV5 Power Hub (5 Years Warranty)
  • 2 x Bluetti B4810 (51.2V-100Ah ) LiFePO4 Self Heating / App Monitor / 6000 Cycle IP65 Battery (5 Years Warranty)
  • Bluetti Epad Central Control Screen Intuitive HD Touchscreen (1 Year Warranty)
  • Bluetti Epanel Smart Intelligent Distribution Panel (1 Year Warranty)
  • Bluetti RV5 to B4810 Power Cable 1.5M + Isolator Switch Wiring Kit (1 Year Warranty)
  • Bluetti RV5 DC-DC Charger (Starter Battery) Wiring Kit (1 Year Warranty)
  • Bluetti B4810 100mm Long + Data Cable Parallel Wiring Kit Short (1 Year Warranty)
  • Bluetti RV5 to E-Panel Wiring Kit (1 Year Warranty)
