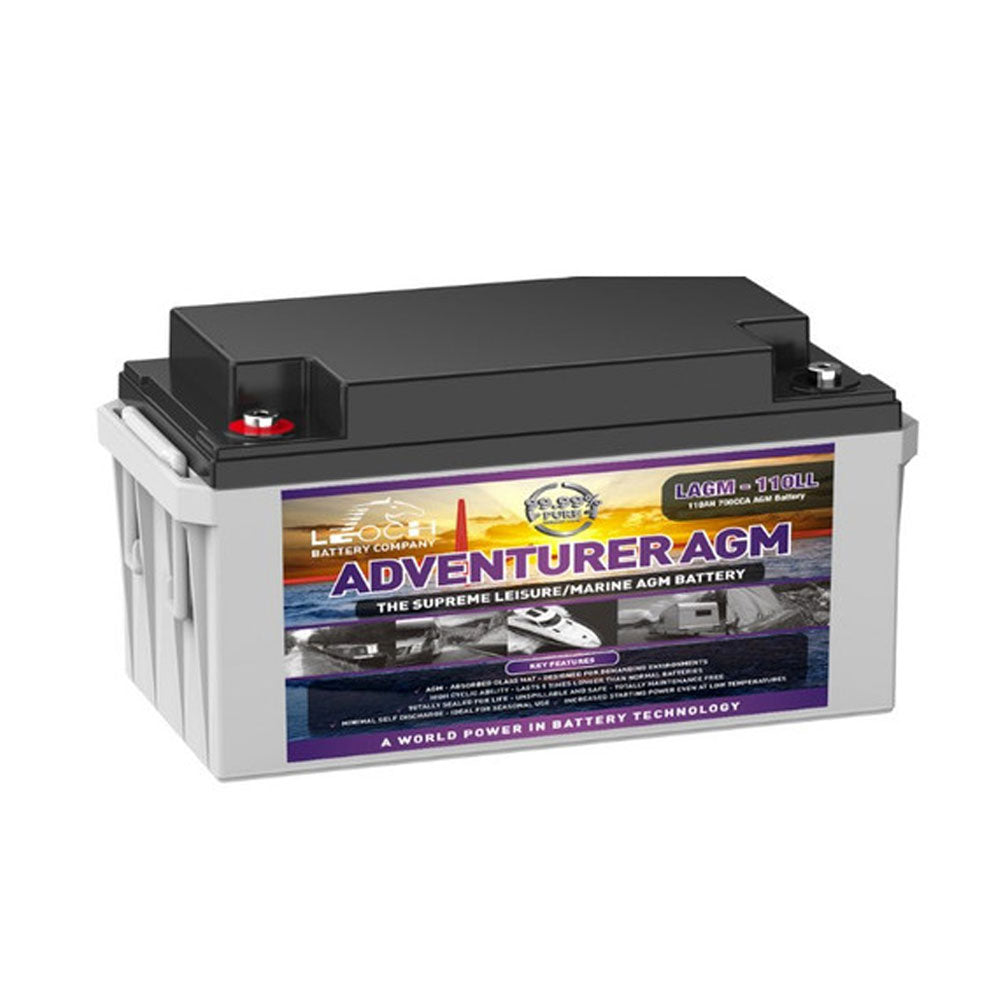

LEOCH 12V 110Ah AGM Deep Cycle Battery

Leoch LAGM-110LL Leisure Battery is designed to deliver exceptional performance and reliability for all your recreational needs.

  • Availability:
    In stock
  • SKU:
    LAGM-110LL
  • Vendor:
Regular price £139.99
20 in stock

Leoch LEOCH 12V 110Ah AGM Deep Cycle Battery
LEOCH 12V 110Ah AGM Deep Cycle Battery

LEOCH LAGM-110LL 12V 110Ah AGM Battery

Leoch LAGM-110LL Leisure Battery is designed to deliver exceptional performance and reliability for all your recreational needs.

Range Info:

Our Adventurer AGM has been designed with the leisure markets in mind. With deep cycling capabilities the adventure range can offer more than 600 cycles at 50% DoD, idea for marine vessels, motorhomes or caravans. Along with being created to be very safe with features such as vibration resistance, sealed for life and maintenance free.

Key Features

  • Specifically designed for cyclic use over sustained periods of time (deep-cycle)
  • Typical max. cycle life of 600 cycles @ 50% Depth of Discharge (DoD)
  • Power demand level of intended application: Medium (casual to regular usage)
  • Unique anti-explosion one-way vent valve design to minimize water loss and increase safety
  • Thick plates using a special pasting formula ensures long service life
  • ABS case UL94-HB (UL94-V0 Optional) is used for increased container strength
  • Absorbed Glass Mat technology (great durability and vibration-resistance)
  • Totally sealed for life – dry-cell, spill resistant and safe
  • High Capacity: With a powerful 110Ah capacity, the Leoch LAGM-110LL ensures a consistent and reliable power supply for your leisure activities.
  • Maintenance-Free Design: Enjoy hassle-free operation with our advanced AGM technology, eliminating the need for regular maintenance and electrolyte checks.
  • Enhanced Durability: Built with robust materials and superior engineering, this battery is designed to withstand the demands of leisure applications, providing long-lasting performance.
  • Versatile Applications: Ideal for caravans, motorhomes, boats, and other recreational vehicles, ensuring you have power when you need it most.
  • Environmentally Friendly: The LAGM-110LL is crafted with eco-conscious materials, reducing environmental impact while delivering superior performance.

Specifications

  • Rated Voltage 12V
  • Rated Capacity C 1.80V/cell 70Ah
  • DimensionsLength 348mm (13.7inches)Width 167mm (6.57inches)Container Height178mm (7.01inches) Total Height 178mm (7.01inches)
  • Approx Weight 21.4Kg (47.2lbs)
  • Terminal T6(M6)
  • Container Material ABS
  • Internal Resistance (25℃) Approx 6.6mΩ
  • Operating Temp. RangeDischarge -15~50℃ (5~122°F)Charge -20~40℃ (-4~104°F)Storage -15~40℃ (5~104°F)
  • Nominal Operating Temp. Range 25±3℃ (77±5°F)
  • Max. Charging Current 0.3C
  • Charge Voltage (25℃) Charge Voltage Temp. Coefficient
  • Float 2.25 - 2.30V/cell -3mV/cell/℃
  • Cycle 2.35 - 2.40V/cell -5mV/cell/℃
  • Effect of temp. to capacity40℃ (104°F) 103%25℃ (77°F) 100%0℃ (32°F) 80%
  • Self Discharge ≤3%/month @25°C

What's Included

1 x Looch AGM Battery 110Ah

Free Delivery

Free Delivery for mainland UK

Free shipping is by DPD and only for addresses on mainland UK.

All BT, Northern Ireland, Northern Scotland, Highlands BT / PH / IV / KW / AB / IM / Isles postcodes will incur an additional £20.00 charge for delivery.

Additional Postage Payable for Shipping to

  • Northern Ireland
  • Highlands
  • Northern Scotland
  • Scottish Isles
  • Isle of Man
  • Orkney
  • Shetland

Warranty

Covered with official 1 Year Warranty

Warranty Period

  • The warranty period starts on the date of purchase by the original consumer purchaser.
